Alternating Current Field Measurement (ACFM)

Alternating Current Field Measurement (ACFM) is used for detecting and sizing surface breaking flaws. ACFM is also applied to structures both in and out of the water. (It has the advantage over some other techniques that the structure requires minimal cleaning and that it can be applied over paint and other coatings up to several millimetres in thickness).

How It Works?

Alternating Current Field Measurement (ACFM) is an electromagnetic technique.

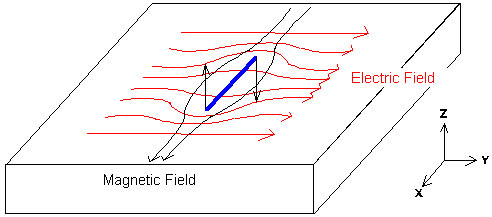

A sensor probe is placed on the surface to be inspected and an alternating current is induced into the surface. When no defects are present the alternating current produces a uniform magnetic field above the surface. Any defect present will perturb the current, forcing it to flow around and underneath the defect; this causes the magnetic field to become non-uniform and sensors in the ACFM probe measure these field variations.

Two components of this magnetic field are measured – one provides information about the depth or aspect ratio of the defect(s), and the other shows the positions of the defects’ ends. The two signals are used to confirm the presence of a defect and, together with a sizing algorithm, measure its length and depth.

acfm Alternating Current Field Measurement

Applications

Alternating Current Field Measurement (ACFM) is particularly suited to the detection and sizing of fatigue cracks at the toes of welds, including all butt, fillet, node and nozzle welds. ACFM to inspect fillet welds in Mobile Offshore Drilling Units (MODUs) to detect any possible original fabrication hydrogen cracking present at weld toes.

  • Offshore cranes
  • Storage tanks floor & roof ‘lap’ joints
  • Storage tank annular welds internal & external
  • Vessel nozzles

The main technical advantages of ACFM are:

  • The ability to detect defects through several millimeters of coating.
  • Works equally well on plain material or welds, ferritic or non-ferritic metals.

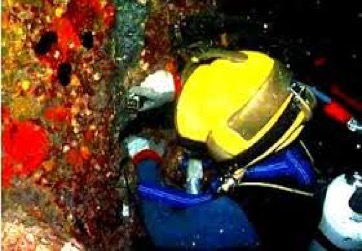

    Can be used on hot surfaces, underwater, or in irradiated environments.
  • Provides both depth and length information. Defects up to 25mm (1″) in depth can be sized accurately.
  • Rope access and ROV deployed.
  • Real time evaluation of the weld area
  • ACFM products are accepted by leading Approval and Standards bodies.
