Corossion Mapping

Corrosion and erosion can inflict significant damage upon petrochemical vessels, tanks and pipework. Due to the risks involved, it is important to recognize corrosion damage as early as possible, especially when such knowledge can assist in planning your operational maintenance strategy. With corrosion mapping systems, solution are available to assist you in developing condition-determined maintenance strategies which can be used in the calculations for the remaining lifetime of a plant. Our strategies can also be used within a structured plant maintenance program and we also offers a visual representation of the results with a comprehensive report of the affected areas helping you to avoid unplanned shutdowns.

Rapid Motion Scanner (RMS)

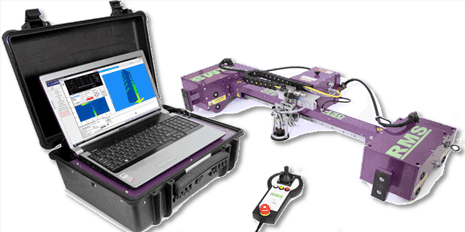

The RMS is a high speed, high accuracy remote access ultrasonic corrosion mapping system designed to evaluate the condition of ferrous structures such as storage tanks, pipelines, pressure vessels and other critical equipment, supporting effective and safe operation. The RMS2 can give 100% coverage in a band up to 1000 mm wide, significantly increasing Probability of Detection (POD) of corrosion, enabling engineers to determine the optimum repair strategy and improve risk life assessment (RLA) & risk based inspection (RBI) maintenance programs. The RMS2 is extremely flexible with a range of scanning heads to suit different inspection requirements.

RMS Rapid Motion Scanner Corrosion Mapping
Scorpion 2

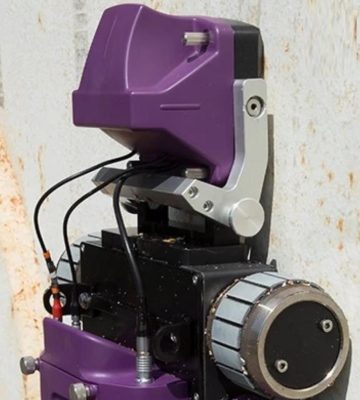

Scorpion 2 Robotic Crawler

Scorpion 2 dry coupled remote access ultrasonic crawler bring major efficiency and data improvements to tank shell inspections and other structures such as vessels and offshore installations. API 650/653 compliant, this powerful duo is the perfect solution for in service inspection of your assets.

Scorpion 2 is equipped with the best ultrasonic electronics and software the industry has to offer. With its advanced filtering, the system can inspect materials 4.7 – 100 mm (0.19 – 3.94 in) faster and more accurately than other solutions on the market.


The R-Scan is a manual, dry coupled B-scan ultrasonic scanner which can be used on a wide variety of components ranging from 50mm diameter pipe up to a flat surface. The R-Scan continuously records ultrasonic thickness measurements as the scanning head is moved over the inspection surface. The recorded UT thickness information is presented as an A-scan trace, a digital thickness measurement and a B-scan thickness profile. Inspection results can be viewed in real time in the field or recalled for post inspection analysis at a later date.

R-Scan can be used for inspection of Piping starting from 2” dia., also it can be used as complementary for RMS scanner for testing of inaccessible or limited access areas.
