Remote Visual Inspection (RVI/CCTV)
Arise Global provides more Specialized Systems for Remote Visual Inspection, including long and ultra long-range and vertical crawlers. For unscheduled assessments, hazardous interventions, confined space tooling, emergency inspections and more, Arise Provides a full range of Robotic tools and technologies that can be adopted and customized for your specific needs.
Introduction
Remote Visual Inspection is the most performed inspection type in Oil & Gas industry 80% of all inspection are VT. For documentation and reporting purposes the inspector uses camera and video footage. Today’s cameras make it possible to safely and remotely inspect most hard to reach locations. The camera is typically mounted on a pole to reach the location of interest. Using RVI, the reach and precision of these inspections are greatly increased.

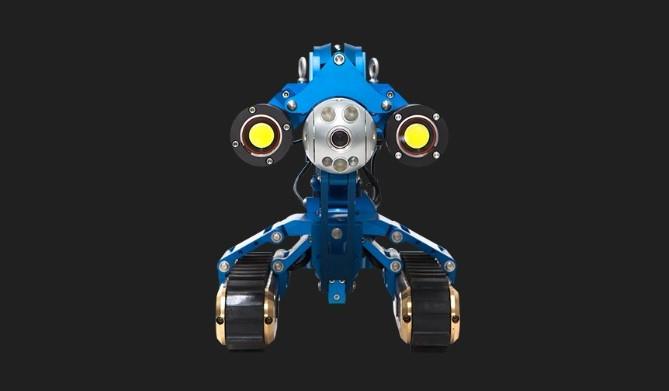

HD Miniature Magnetic Crawler
This magnetic crawler offers a unique solution for high definition remote visual inspection across a broad range of applications. Perfect for examining steel structures, this modular inspection robot offers the adaptability you can expect from all IM3™ technology.

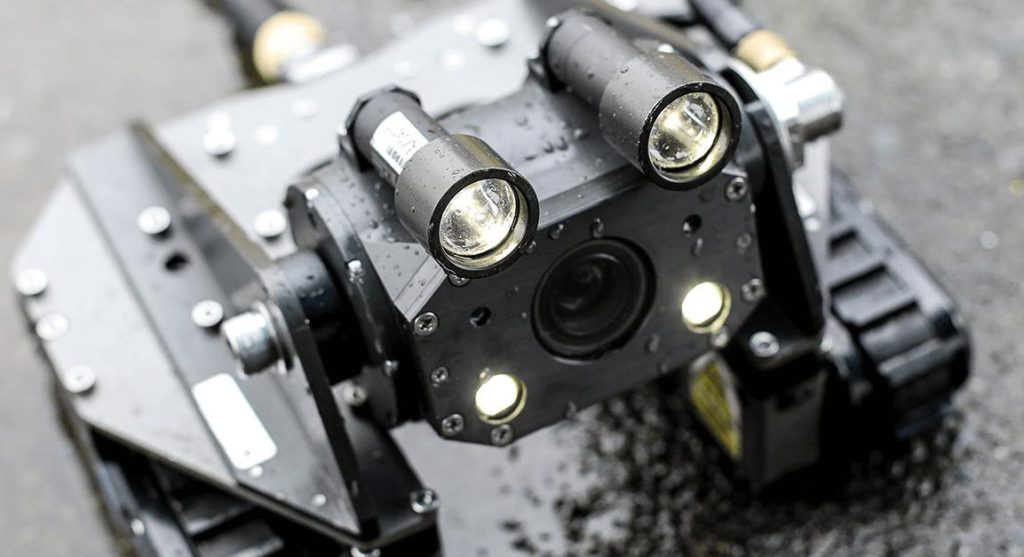

Robotic crawler for extremely tight spaces
This remote-controlled robotic crawler can inspect extremely tight spaces, reducing or eliminating the need for confined space entry. This remote visual inspection system gets into areas that are simply inaccessible with other technologies and provides a clear view of real-time conditions of capital assets and aging infrastructure.

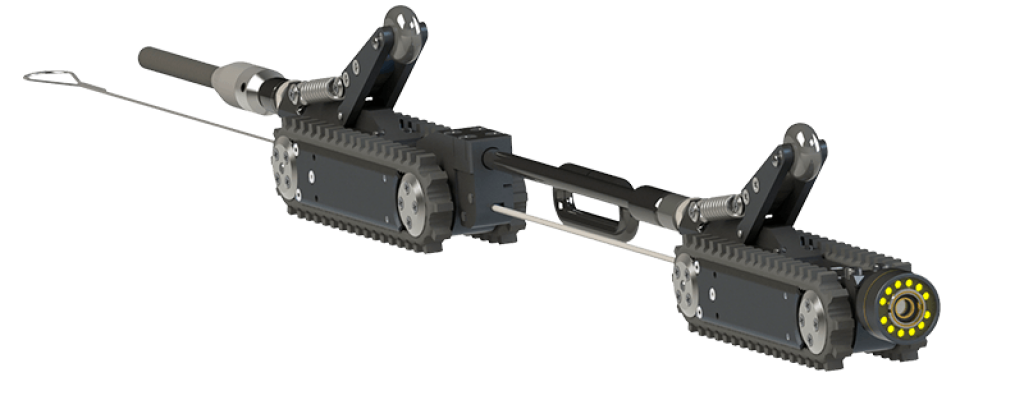

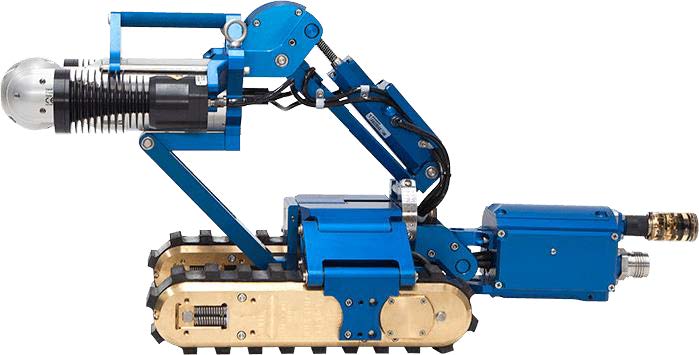

Modular, long range internal pipe inspection system
This robot is well suited to a variety of inspection applications including Sewers , freshwater lines , hydroelectric penstocks and fish bypass lines, petrochemical and power plant intake pipelines , and difficult to access pipes in the oil and gas industry. Its unique capability to operate over long distances and a wide range of diameters make it the ideal robotic solution for remote visual inspection in confined spaces, hazardous environments and underwater applications.
Push Rod Camera System
This push rod camera system carries a versatile coiler running 500 feet (150 meters) of rod. Its camera head has 2 cameras, one camera to look forward and the second rotating camera to look at the sides. Ideal for industrial inspections in tight spaces.

Applications
- Boilers, heat exchangers, condensers
- Rotating equipment
- Process modules (vessels, caissons…)
- Chimney / Flare Stack inspection
- LPG storage Tanks (perlite)
- Oily sewers, services water lines, utilities, deluge
- Reactors, Cyclones, combustion chambers
- Turbines, compressors, pumps
- Cooling water lines, gas lines
- Fuel lines, drain hoses, umbilical cables
- Reactors, columns, vessels
